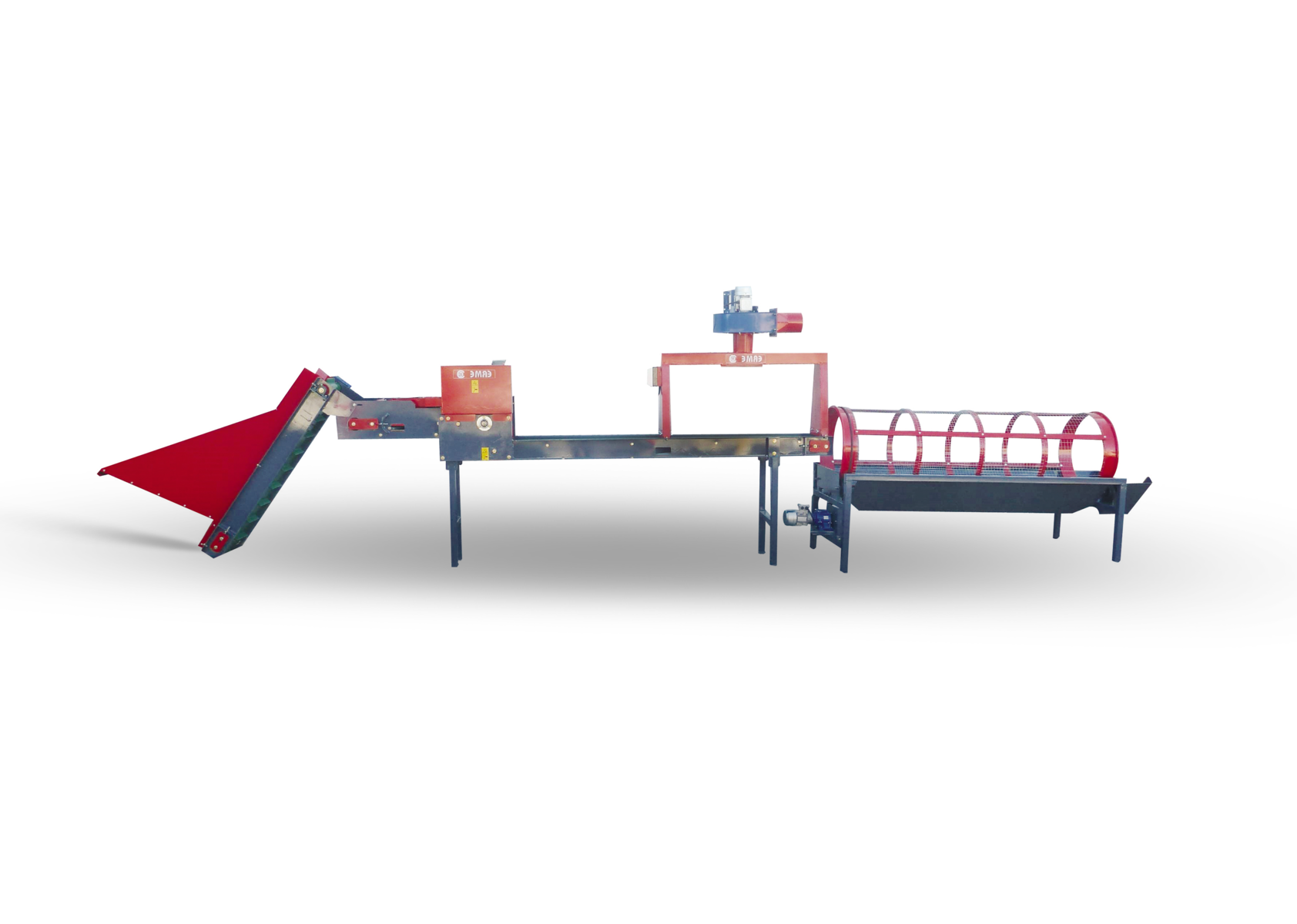

Garlic Splitter - 150kg/h

Ref. E150

Solutions adapted to your needs. Your garlic quality preserved with our innovated and technical systems.

The garlic bulbs are placed in the hopper, a ridged feeding belt feeds the splitting unit.
The garlic is split between a specially designed soft belt and a moving up & down top rubber plate. Rubber stars help to finish the splitting process before an optimal manual finishing. A suction removes all the skins and waste to leave the clean cloves to be graded.

>  Watch the video

Les points forts

Preserved garlic quality

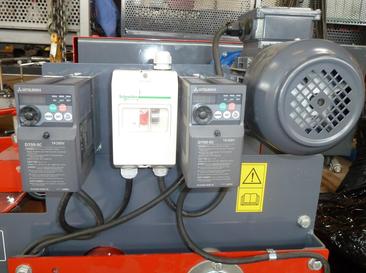

The E150 splitter has a total power of 1.70Kw 380v three phase, this machine is made of the following units:

A feeding belt
- Moto variator 0.37Kw 380v threephase
- A 150kg hopper (Large feeding hopper on request)

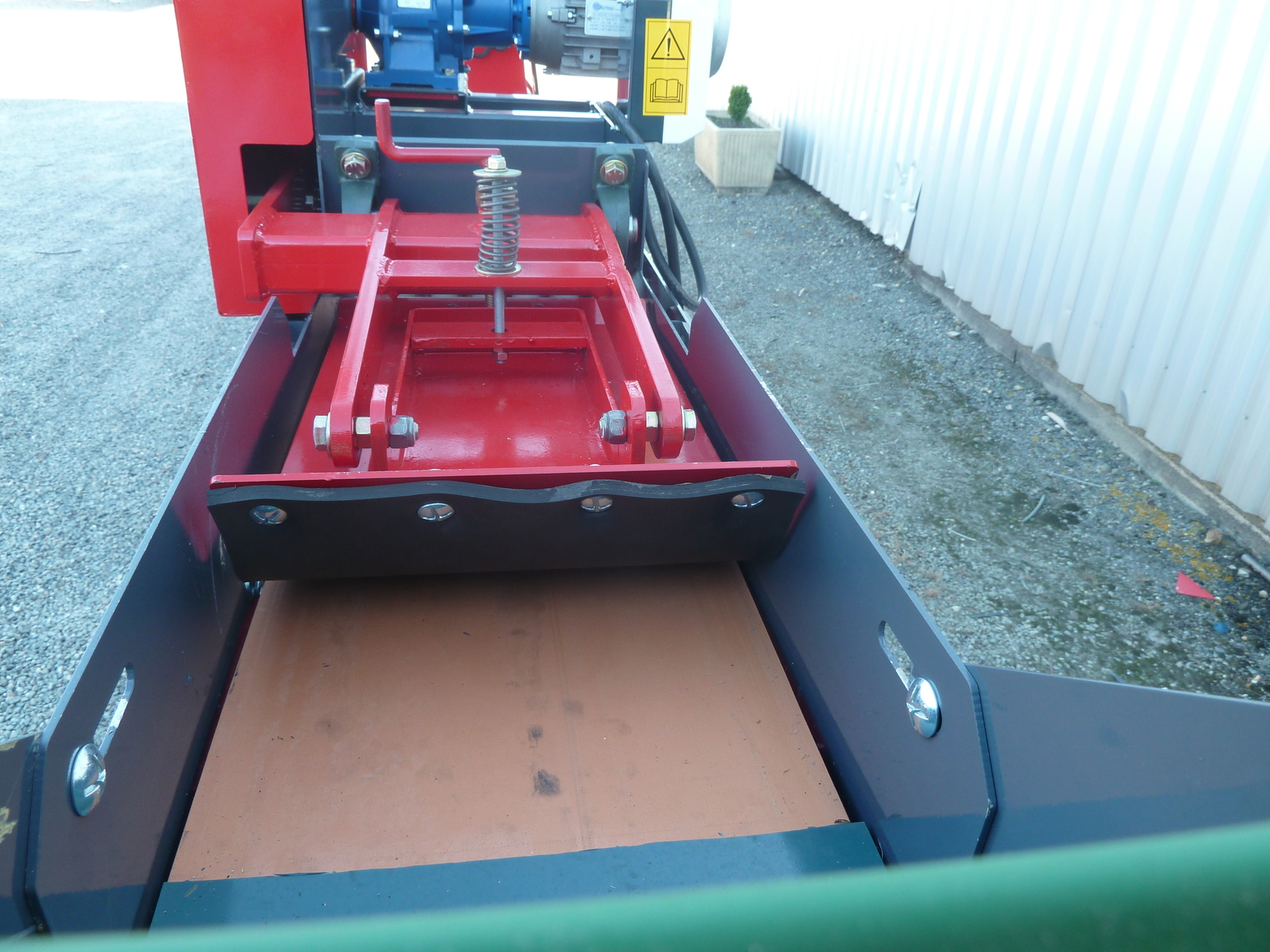

A splitting unit
- A belt with a top moving rubber coated plate adjustable according to the different grades.
- Six rubber finishing stars
A 0.55kw 380v triphase skin & waste suction unit with power adjustment

A manual finishing belt for 2 to 4 people

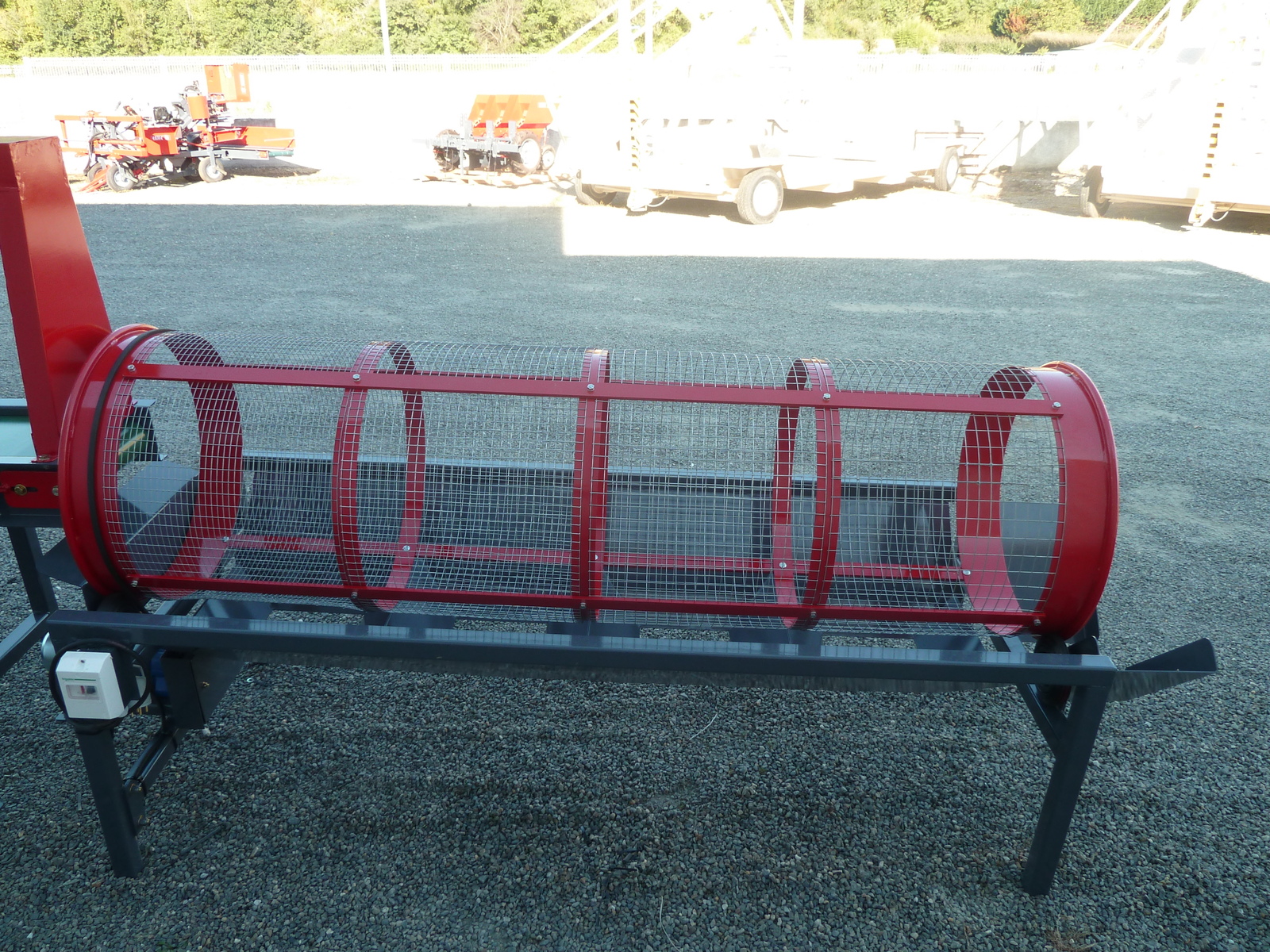

A clove grading drum
- Grade 1: < 10mm
- Grade 2: 11 à 17mm
- Grade 3: 18 à 23mm
- ​Grade 4: > 23mm

Machine output: 150Kg/h to 200Kg/h

Options for this product

E150 220v singlephase
