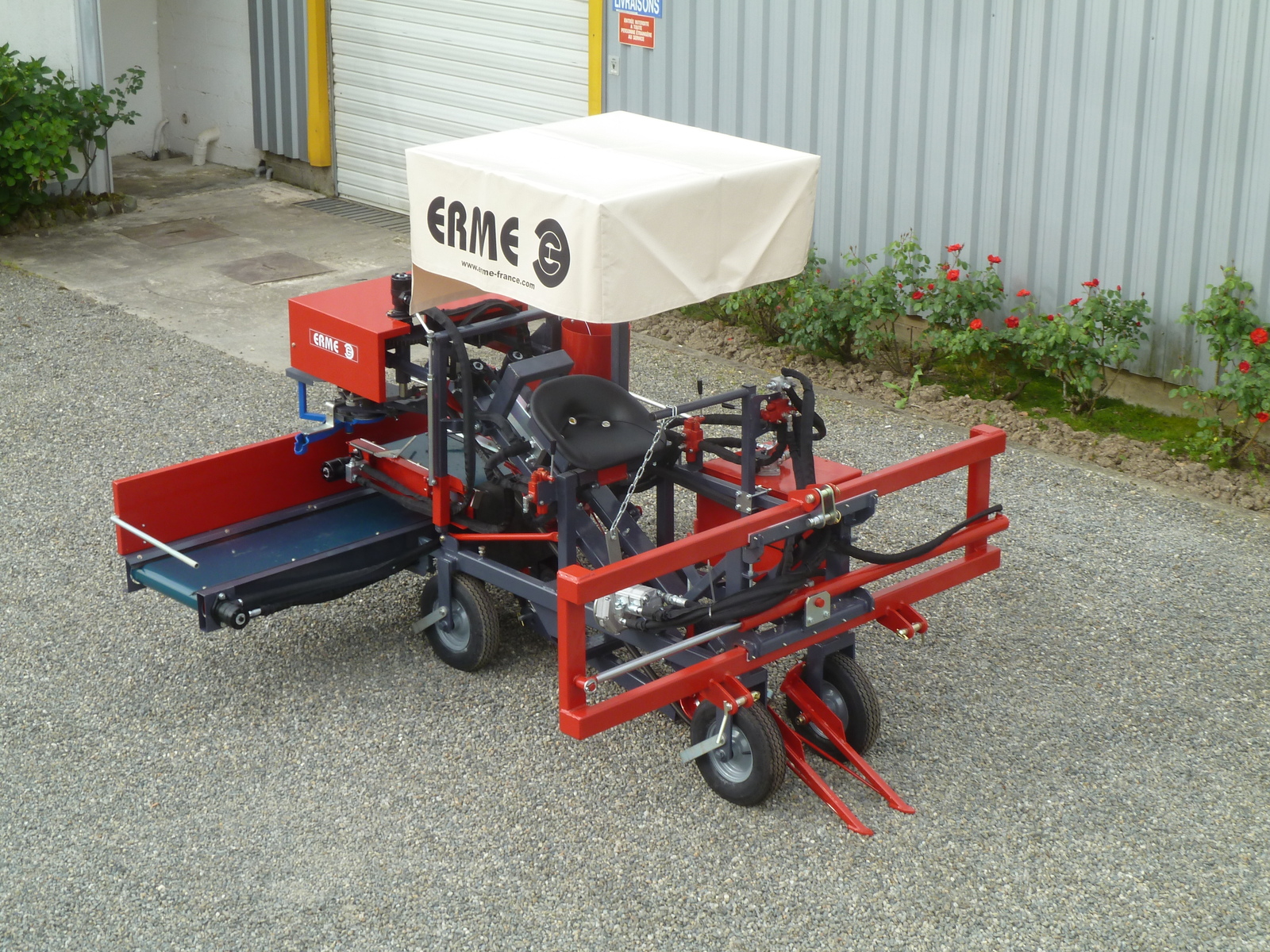

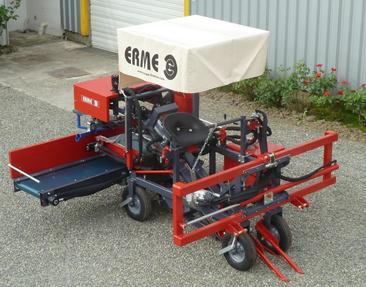

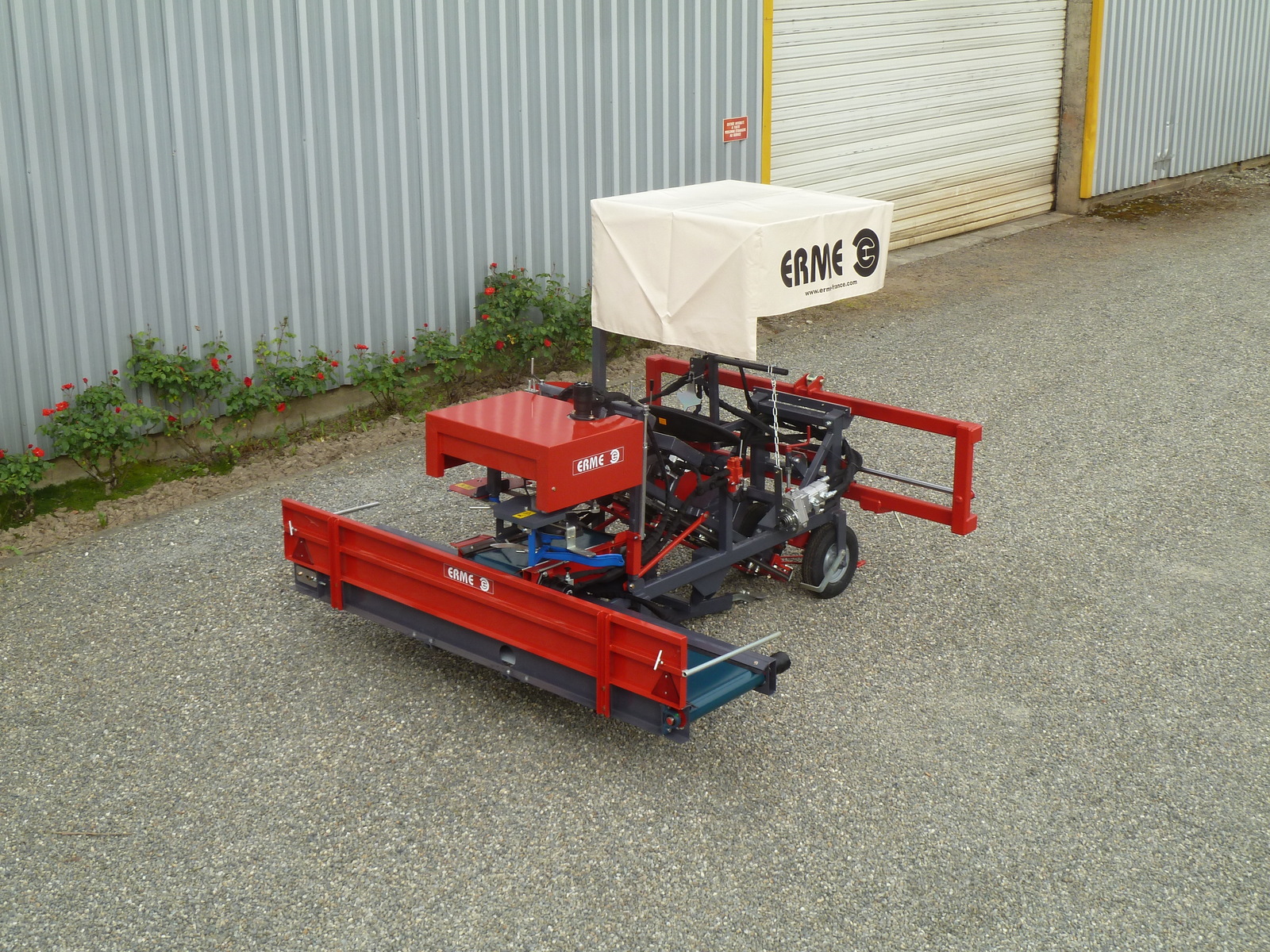

Type: RL1
Carried machine, multi position three point linkage to the tractor.
Harvest system behind the tractor, minimal distance between rows 35cm.
The harvest system is composed of:
- Two front leaf lifters
- A shoe for lifting the garlic heads, manual depth adjustment (hydraulic is optionnal)
- Two harvesting belts, manual height adjustment.
- A progressif vibration system to eliminate the excess of soil. A knob enables to adjust the speed.
- Safety pressure valve system in case of blockage of the belts.
- A binding unit with several adjustments (size of the bundles, tying height)
- An underneath transfer conveyor belt during the binding
- Lateral guiding of the rows during harvest. Hydraulic ram on the main frame left or right.
A rear side conveyor belt to drop of the garlic bundles to the left or right.Drive system thanks to two hydraulic pumps with a multiplicator mounted directly on the tractor PTO shaft (540rpm).
Hydraulic oil tank with cooling system.

Caracteristics
Nominal speed :                       4km/h to 6 km/h
Tractor power :                        50hp
Harvest output :                      1ha in 8 hours
Length :                                   3.40m
Width :                                    2.10m
Height :                                   1.60m
Empty weight :                         800kg
