Solutions adapted to your needs, Systems where efficiency & tradition gurantee the quality of your garlic. With binding, the drying and conservation of your garlic is guranteed.

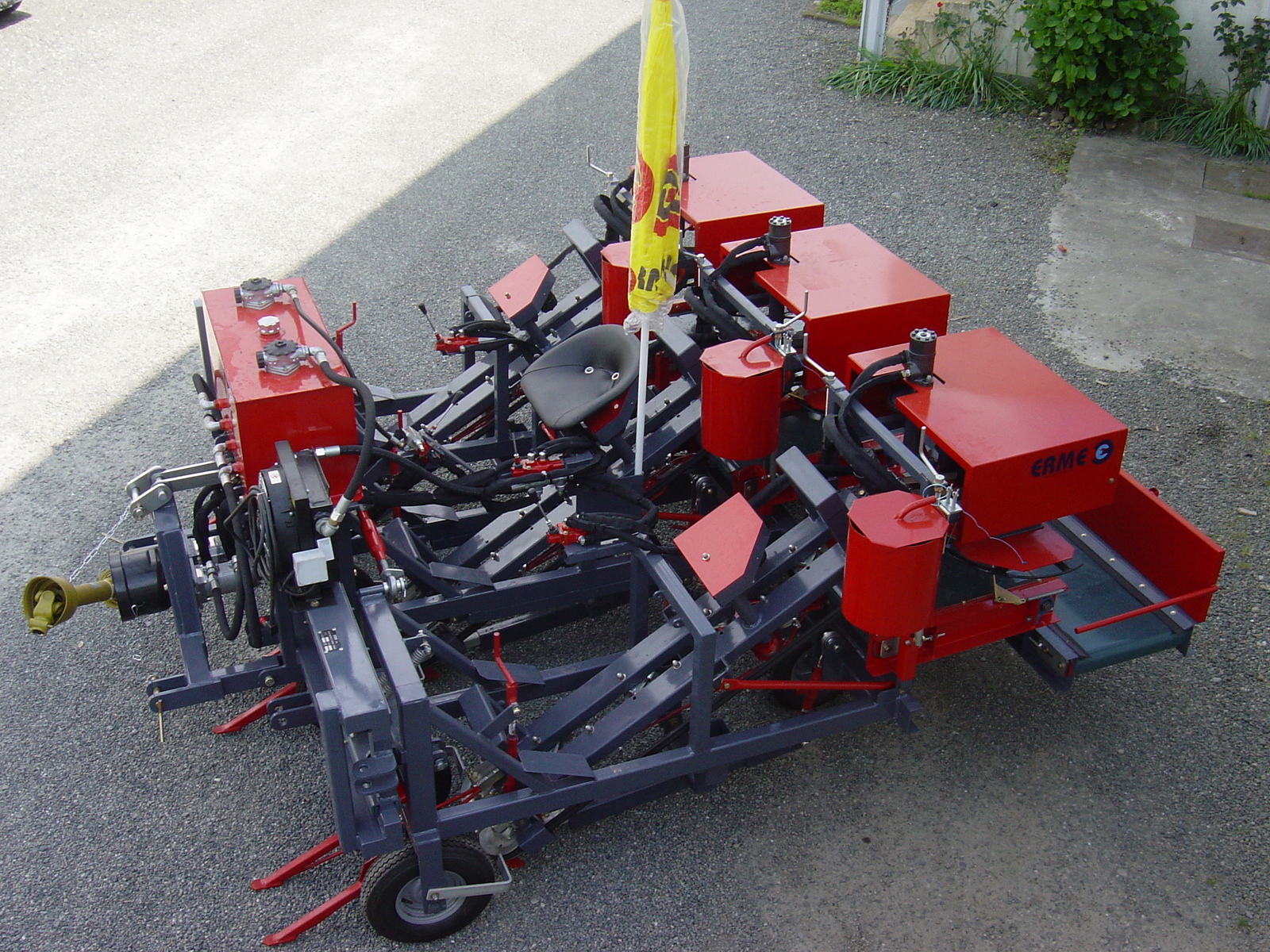

The harvester binder three rows is ideal for large size farms, and is adapted to 6 equally spaced row planting schemes.
The machine is also ideal for equally spaced planting schemes all over the field.
Caractéristiques
Type: RL2 Carried machine, multi position three point linkage to the tractor. Harvest system behind the tractor, minimal distance between rows 45cm. The harvest system is composed of: - Two front leaf lifters - A shoe for lifting the garlic heads, manual depth adjustment (hydraulic is optionnal) - Two harvesting belts, manual height adjustment. - A progressif vibration system to eliminate the excess of soil. A knob enables to adjust the speed. - Safety pressure valve system in case of blockage of the belts. - A binding unit with several adjustments (size of the bundles, tying height) - An underneath transfer conveyor belt during the binding - Lateral guiding of the rows during harvest. Hydraulic ram on the main frame left or right. (+/- 10cm for each row) A rear side conveyor belt to drop of the garlic bundles to the left or right.Drive system thanks to two hydraulic pumps with a multiplicator mounted directly on the tractor PTO shaft (540rpm).

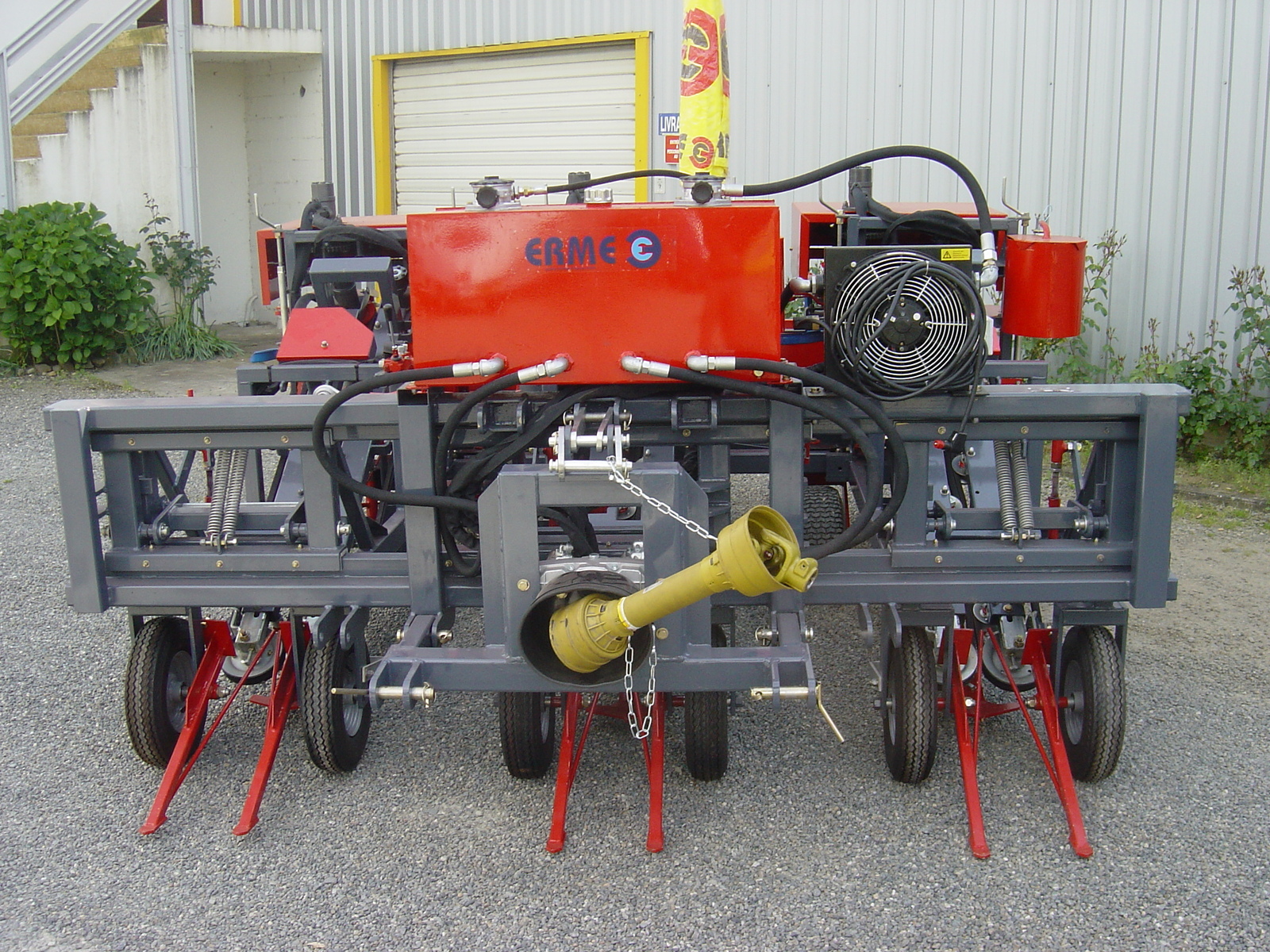

An intermediar 3 point linkage system holds the four hydraulic pumps + multiplicator. Driven by tractor PTO shaft 540rpm. Hydraulic oil tank with cooling system.
